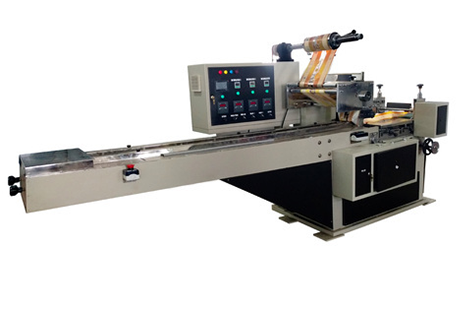

Chocolate Packing Machine

Chocolate Packing Machine

  Horizontal Flow Wrap Machine can pack a variety of solid products of different shapes and sizes with all types of heat sealable films and laminates.These machines are extensively used to pack Appalams, Rusks, Biscuits, Bun, Chocolate Bars, Stick Ice Cream Bars, Cakes, Groundnut Chikkies, Cotton & Bandage Roles, Scrub Pads, Noodles etc.in centre sealed made of heat sealable laminated polyester or B.O.P.P film. Manufacturers of Quality Chocolate Packing Machine.

Specifications :

Technical Specifications
Feeding Style : Manual / Auto
Film thickness 40 microns and above
Packing Material : All Type of laminated, BOPP, LDP, Aluminum foil
Packing Size: Length: 30mm to 150mm, Width: 30mm to 100mm, Dia: 20mm to 50mm, Height: 10mm to 50mm
Packing Style : Centre Seal
Machine Dimension : Approx length : 2500mm, width : 1200mm, Height :1350mm
Production Output : Approx 30 to 75 Packs / minute Dependingupon product size
Power : Motor: 1 HP, 3 Phase, 440v, Heater: 50v, 2000kw
Machine Weight : 850Kg Approx
Features
Machine most suitable for packing Rectangular, Square and Round Products
Machine and its spares are all in own manufacturing in international standard
Food grade PTFE lugs are provided at in feed chain
Providing separate mechanical arrangements for different varieties for different pack length
Reputed ISI marked Electrical goods and drives are provided
